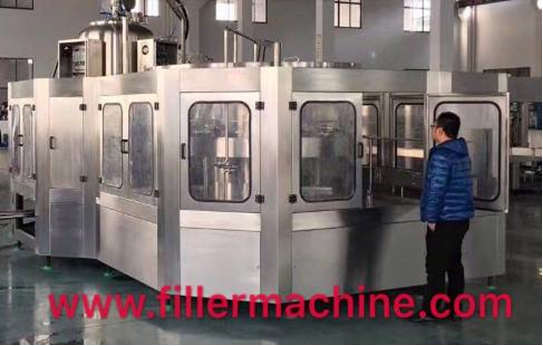

The carbonated filling machine is consists of bottle washing,filling and capping functions. It can used for PET/Glass bottle container. It is used in the requirement of co2 liquid, like cola, beer.

Features

Carbonated drink filling machine consists of the equipment as below followings:

   ● The main frame of equipment is welded from 120X60X6mm high-strength carbon steel.

   ● The main support of the equipment frame is arranged in a "well" type, and the distance between two adjacent supports does not exceed 600mm.

   ● Using the company's original flipping bottle clamp, the bottle clamp stuck the bottleneck part, to avoid the traditional bottle clamp on the rubber clamp on the bottle thread part of the possible pollution.

   ● Bottle clamp and lifting mechanism sliding sleeve are made of German iguscorrosion resistant maintenance free bearings.

   ● Filling valve structure design is reasonable, the high speed, high precision. All parts using CNC machining center equipment.

   ● The sealing head adopts the magnetic constant torque device, when the swivel head is removed through the cover plate, the top cap mold covers the cap, and the cap is straightened to ensure that the cap is positioned correctly in the swivel cover mold to ensure the sealing quality.

Application fields

Carbonated drink filling machine is widely used in co2 liquid factory, beer factory, like cola, sprite product.

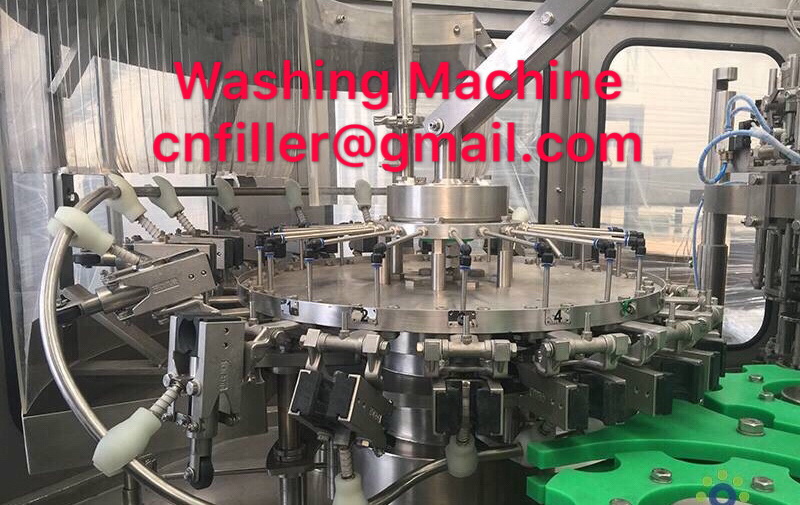

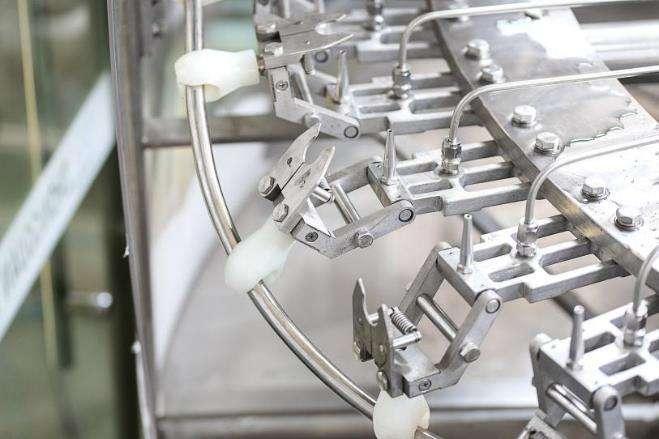

Rinser part

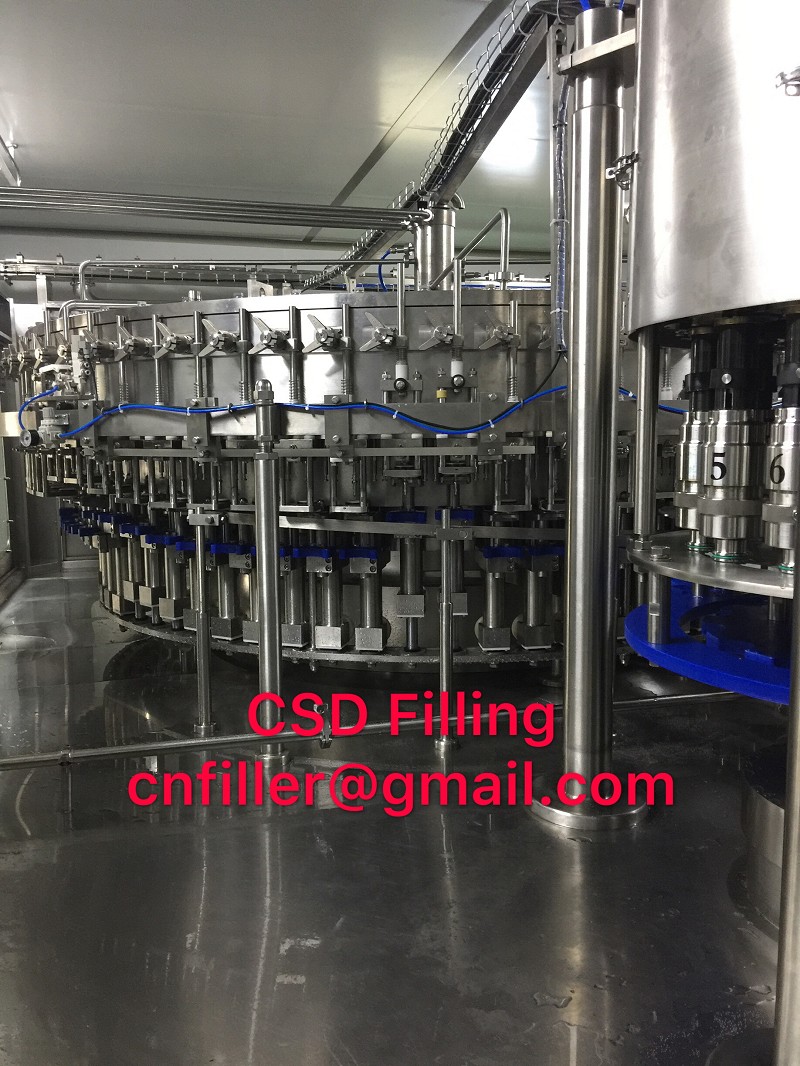

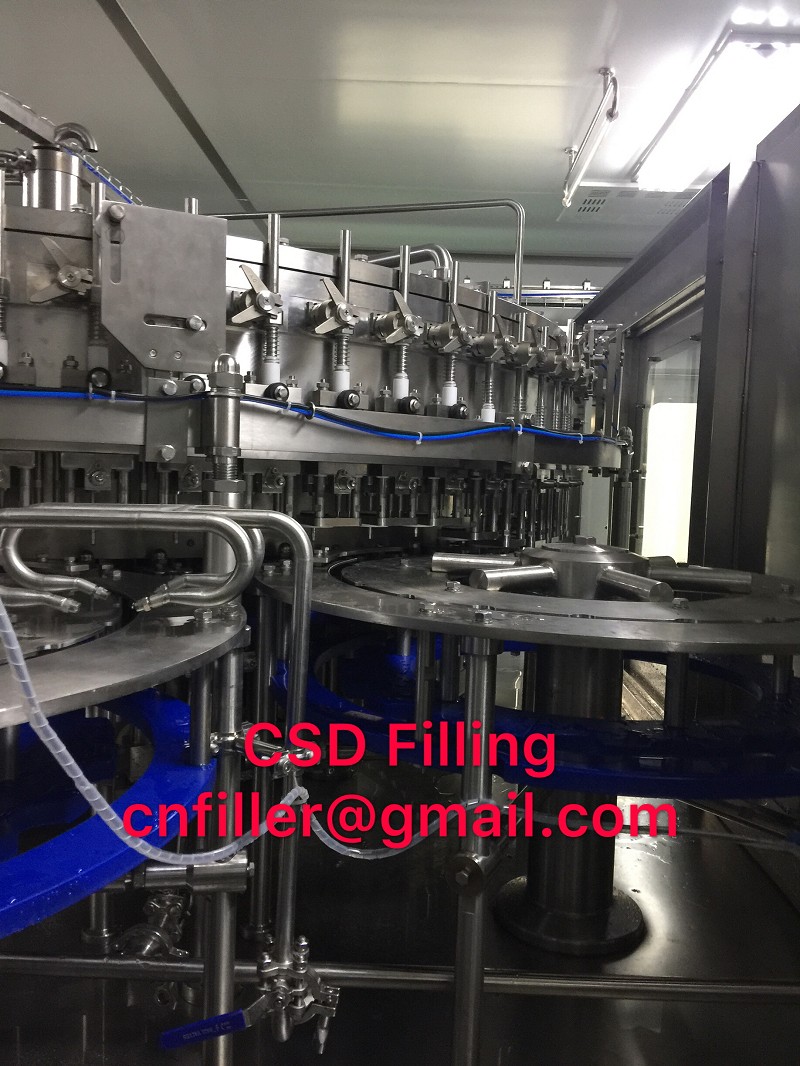

Filling part

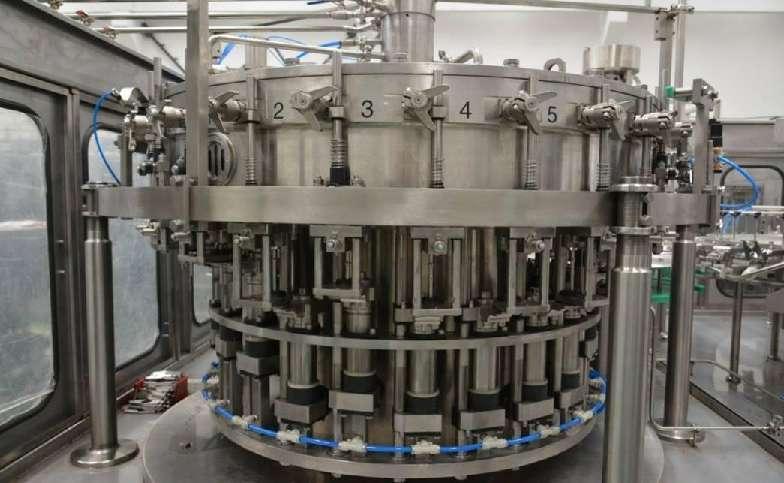

Isobaric Filling Mechanical

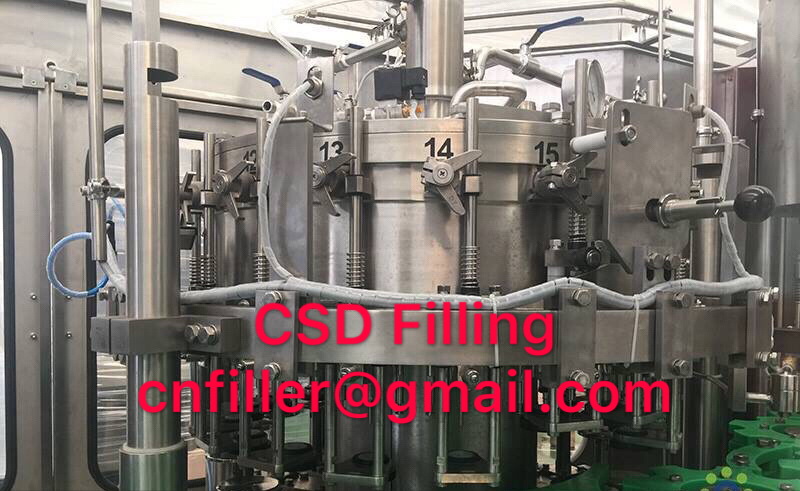

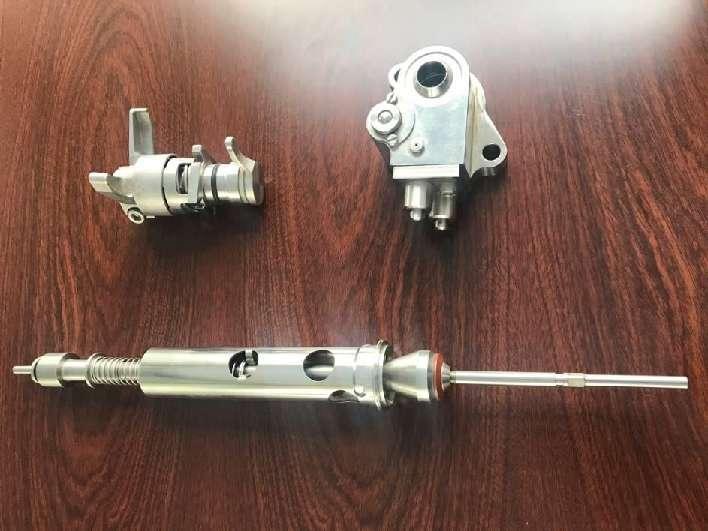

Isobaric Filling Valve

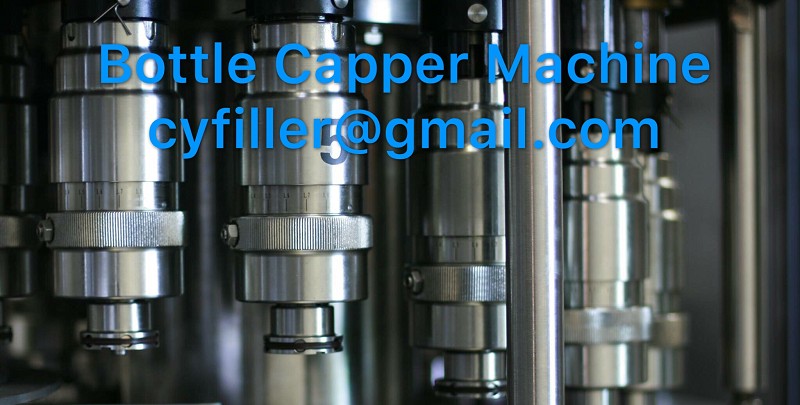

Capping part

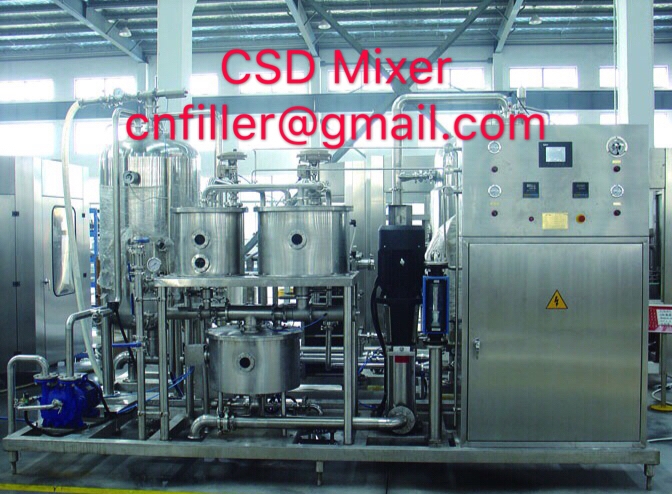

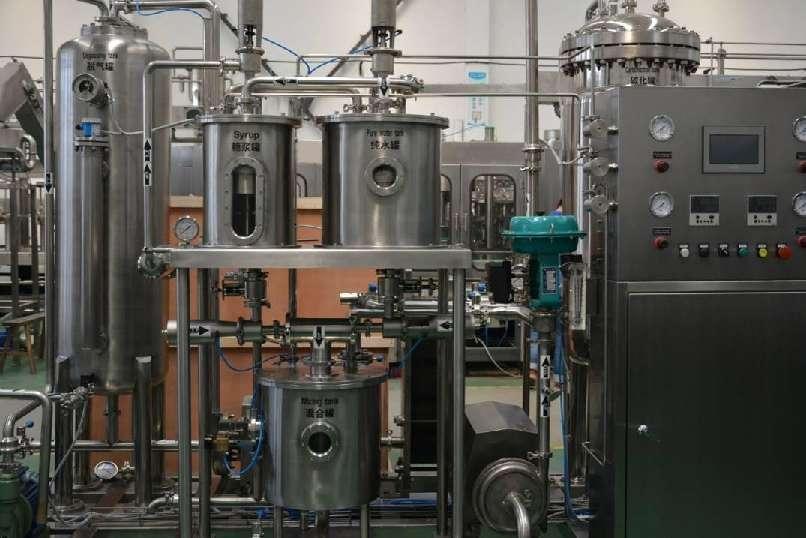

Co2 mixer

---
