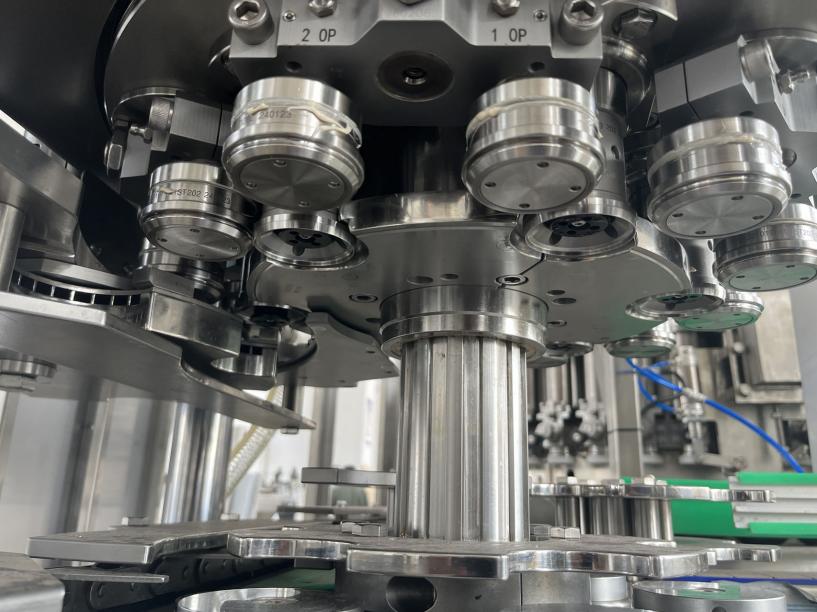

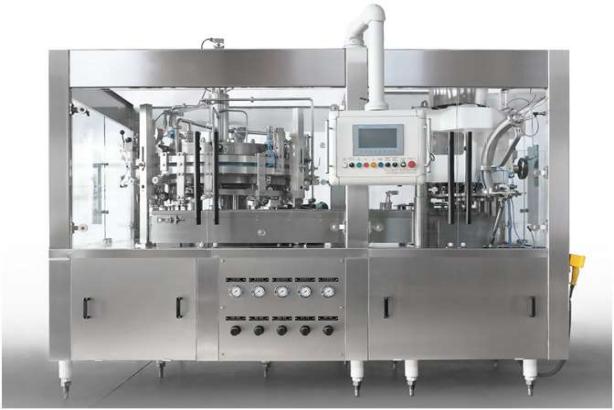

Beer Can Filling Machine

The aluminum can filling machine is consists of filling and seaming functions. It can used for aluminum can. It is used in the requirement of can package product.

Features

Can filling machine consists of the equipment as below followings:

• Filling and seaming is unity designed and filling drive system is supplied by sealing system to make sure both absolutely synchronous and coordinate.

• Frequency control of production speed

• Counter-pressure filling is applied which owns the advantages of high speed, accurate liquid level, low beer lost, good seaming quality.

• Filling volume control type of can is vent tube control—accurate liquid level.

• For empty can, there is CO2 Pre-purging and CO2 Purging, which efficiently decrease the dissolved oxygen.

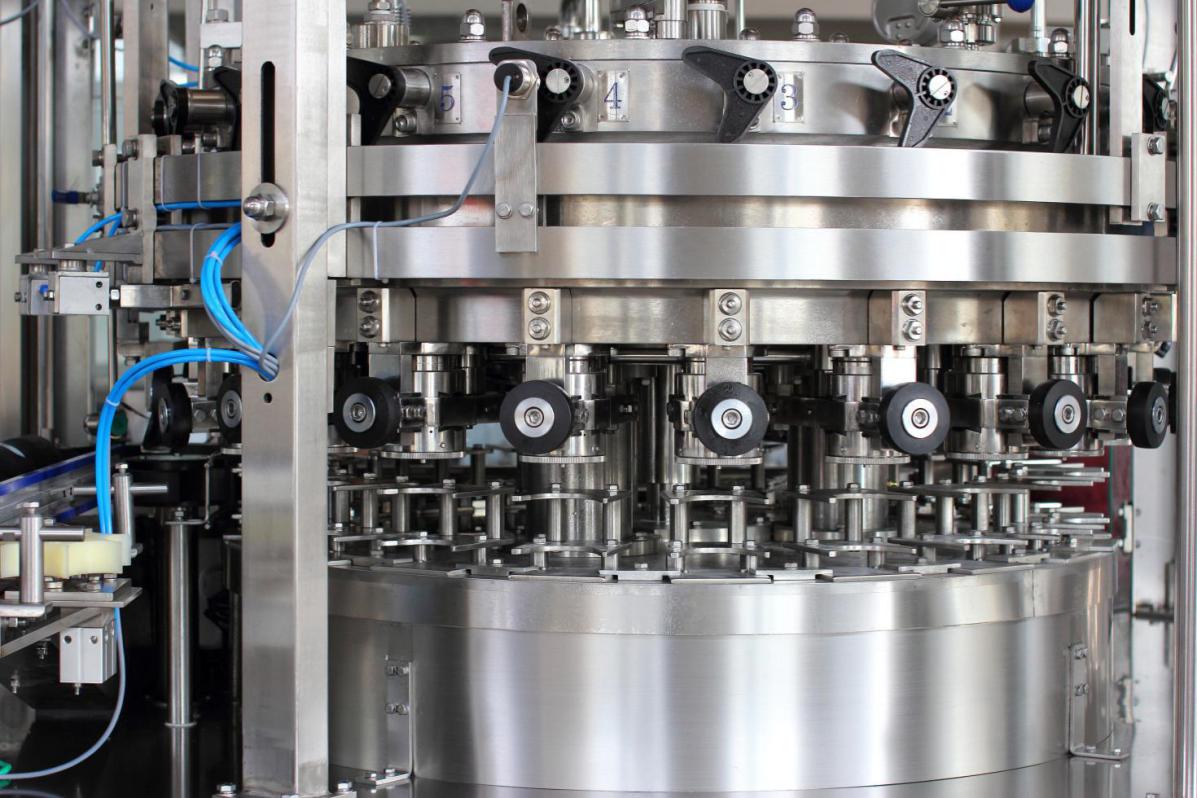

• During filling process, cans don’t lift while filling valves do. Valve’s lift is controlled by cylinder but not ordinary mechanical type lifting, so there is little wear parts.

• Perfect liquid level control guarantee the stable liquid level inside of filling bowl.

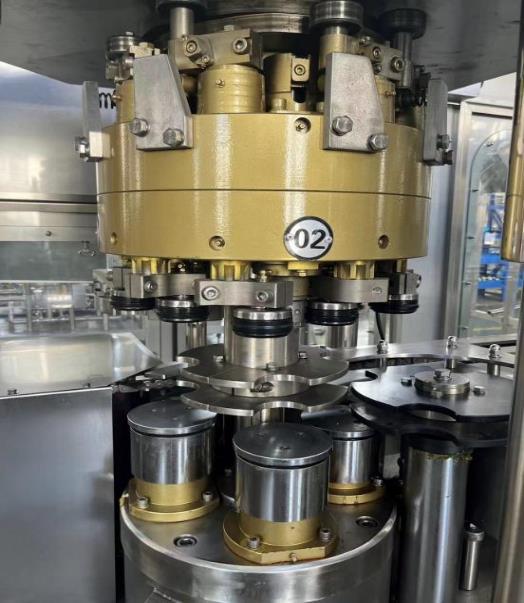

• Can sealing roller is hardened by high hardness alloy (HRC > 62), and can sealing curve is precision machined by optical curve grinding to ensure the quality of can sealing.

• The machine has a control system with a lower cap, no cap, to ensure the normal operation of the machine.

• The machine has CIP automatic cleaning function.

• The machine has a centralized lubrication system.

Application fields

Can filling machine is widely used in the requirement of can products, like beer.
