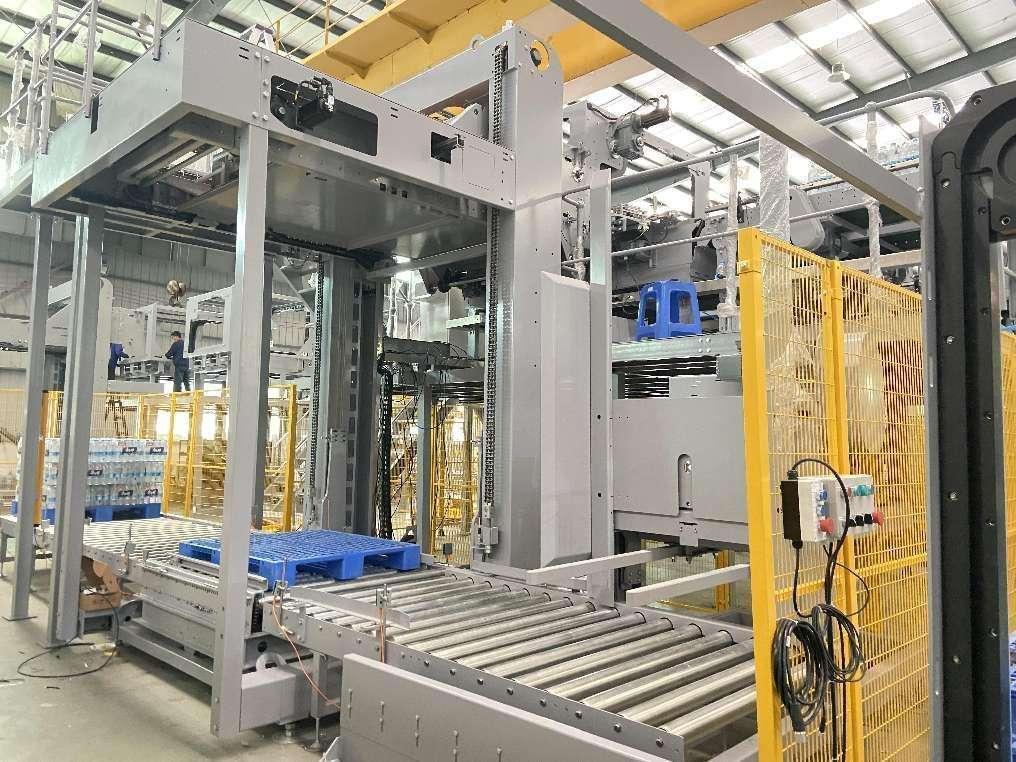

Automatic Palletizer

1. Main parameters

1.1 Name: Automatic palletizer

1.2 Model: DCMD30D

1.3 Max. capacity:16~20 packs/ minute

1.4 Pack type: carton

1.5 Dimensions: 5050*2780*3930mm（L*W*H）

1.6 Standard pallet size：1100mm*1100mm*150mm

1.7 Power：18Kw (Including classification yard, main machine, five sections pallet conveyor, pallet dispenser, two speed belt conveyor, case rotating roller conveyor)

1.8 Compressed air: (a)Pressure: 0.5MPa (b)Air consumption: max: 100L/min

1.9 Weight (Main machine): 4.6 T

1.10 Floor load: ∽8 X 750 Kg

1.11 Horizontal angle: ± 1°

1.12 Noise: ≤ 85 dB
