Piston Filling Machine

This machine is 4 in 1 monoblock for juice hot filling, have 4 functions, washing, piston filling, liquid filling and capping. The machine adopts high technology from Europe, can be suitable for juice, juice with particles, vitamin drinks, and other flavor juice, with easy operation control system.

Features

Carbonated drink filling machine consists of the equipment as below followings:

• The main frame of equipment is welded from 120X60X6mm high-strength carbon steel.

• The main support of the equipment frame is arranged in a "well" type, and the distance between two adjacent supports does not exceed 600mm.

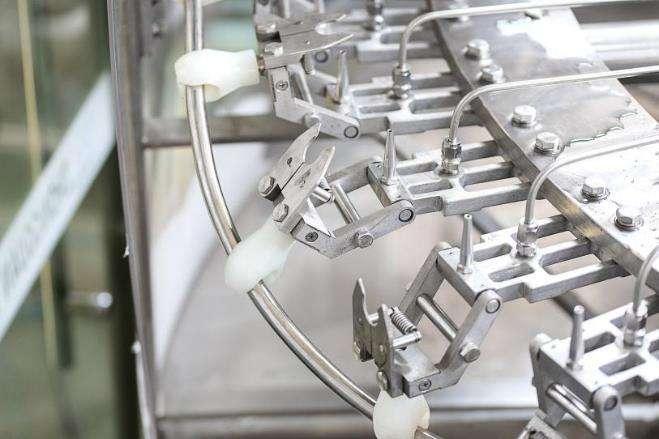

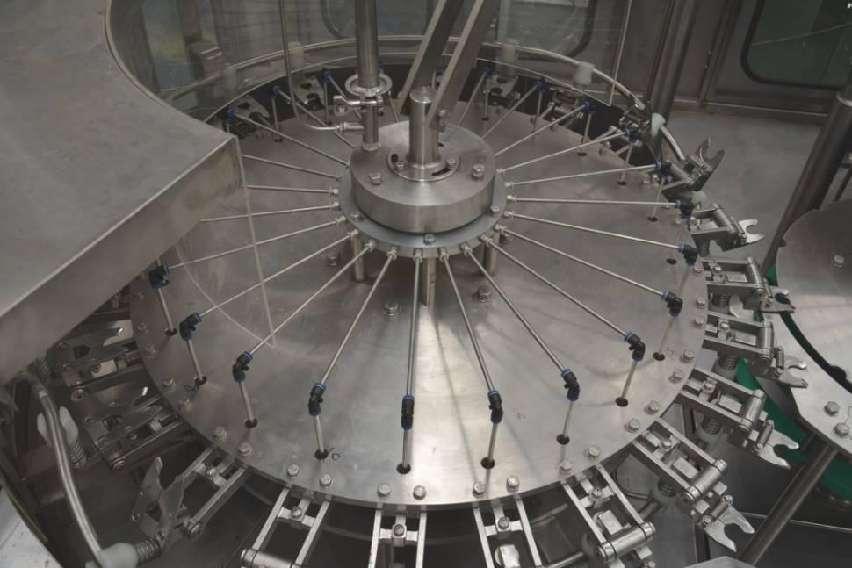

• Using the company's original flipping bottle clamp, the bottle clamp stuck the bottleneck part, to avoid the traditional bottle clamp on the rubber clamp on the bottle thread part of the possible pollution.

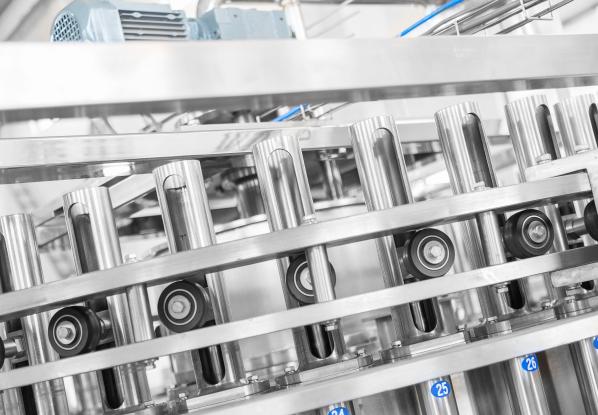

• Bottle clamp and lifting mechanism sliding sleeve are made of German igus corrosion resistant maintenance free bearings.

• Filling valve structure design is reasonable, the high speed, high precision. All parts using CNC machining center equipment.

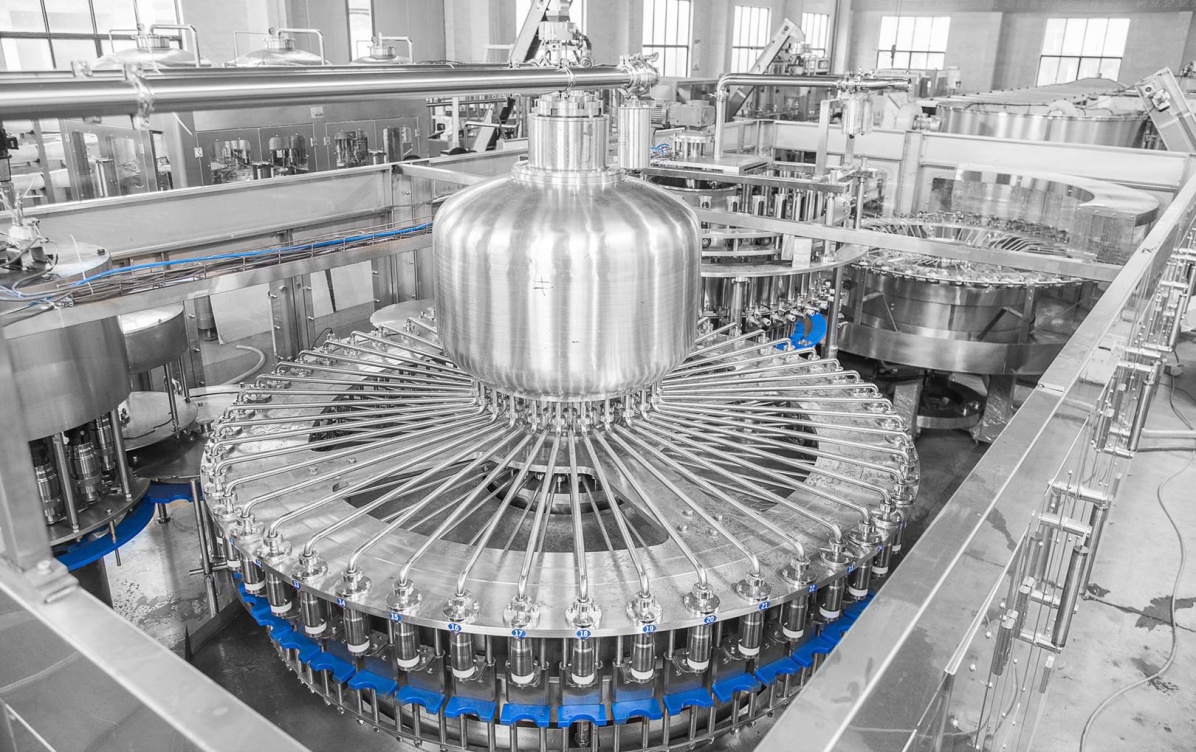

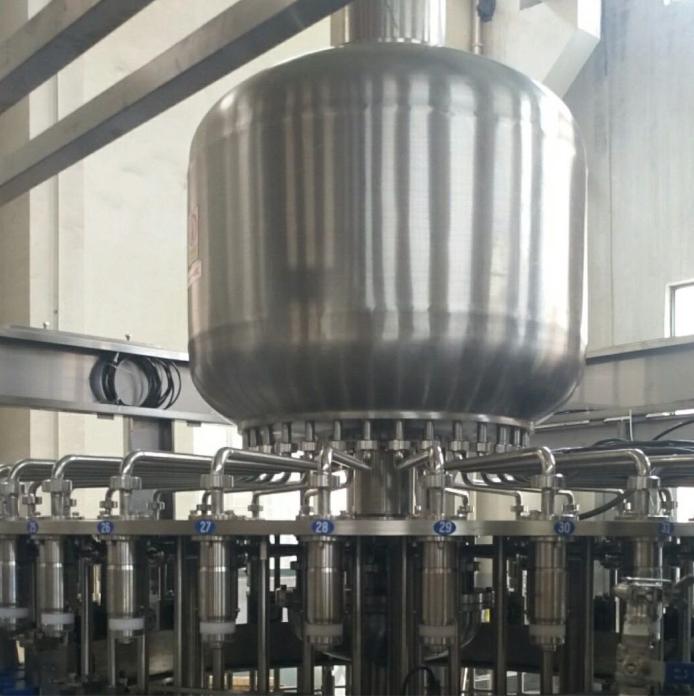

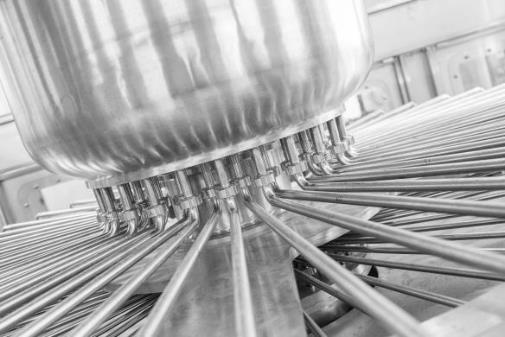

• Piston Filling part contains turret part, material tank, filling valve, and control part. Machine height can be adjusted by the rack in machine bottom. Empty bottles enter into conveyor belt, then by bottle screw and starwheel into filling valve.

• Filling valve is piston filling type. Under filling valve is a turning valve to control fill or not. Fill or not finally determined by bottle entering into filling machine or not. No bottle, no filling. There is a proximity switch detects bottles.

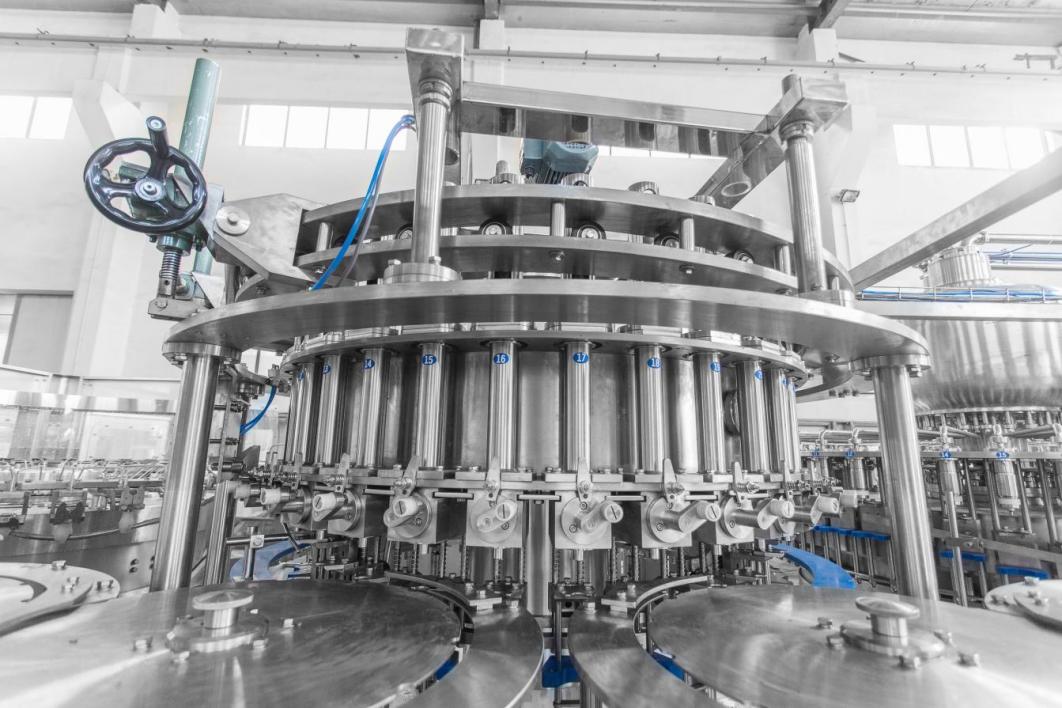

• When customer need adjust piston filling height, rotating the handwheel in the inner part of the rack.

• Piston Filling part contains CIP washing ball. Our machine has CIP tube connects with CIP cleaning system. Washing ball under the pressure of pump to make ball rotating to wash filling tank. Under the pressure of open valve turret washing material drain out and finally return to CIP system.

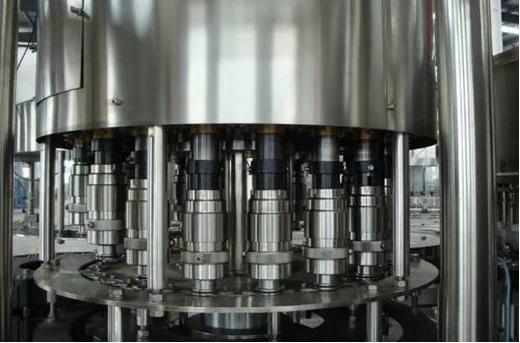

• The sealing head adopts the magnetic constant torque device, when the swivel head is removed through the cover plate, the top cap mold covers the cap, and the cap is straightened to ensure that the cap is positioned correctly in the swivel cover mold to ensure the sealing quality.

Application fields

The piston machine adopts high technology from Europe, can be suitable for juice, juice with particles, vitamin drinks, and other high viscosity product.
