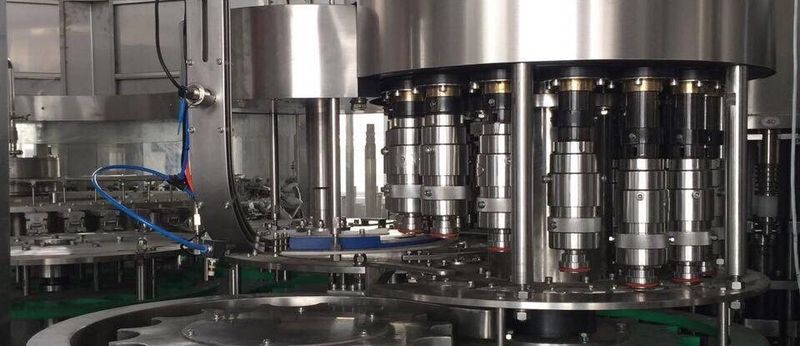

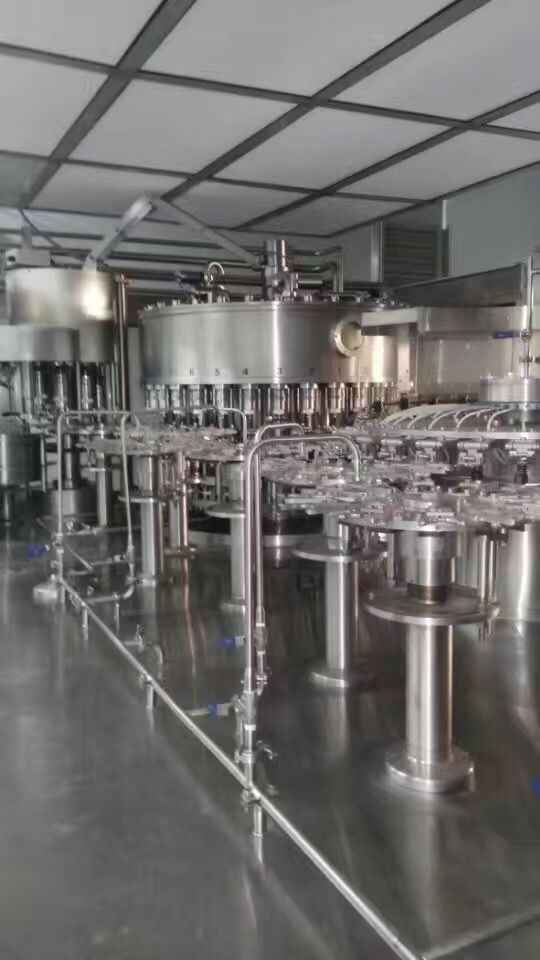

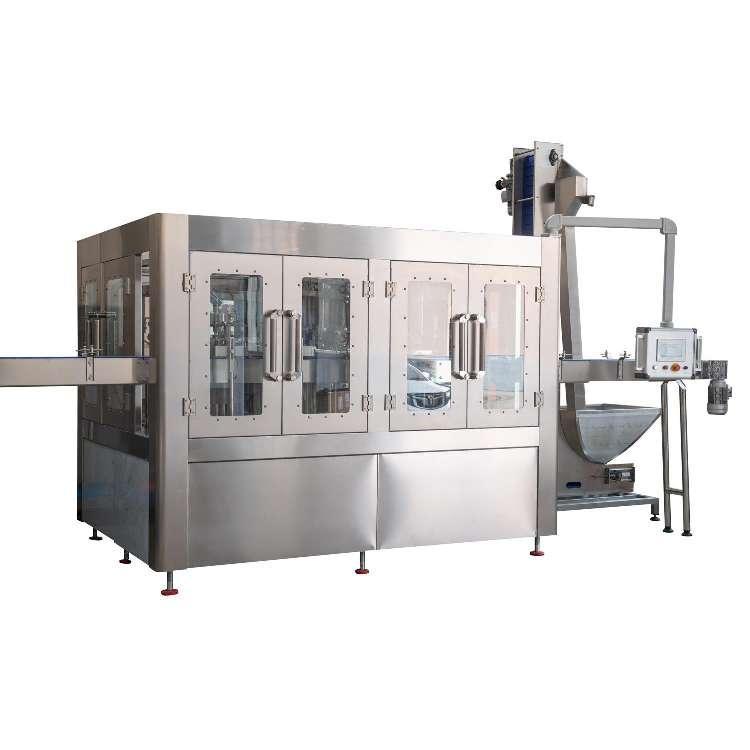

Bottled Water Filling Line
Products: Filling machine
The water filling machine is consists of bottle washing,filling and capping functions. It can used for PET/Glass bottle container. It is used in the requirement of drinking water.
Features
Drinking water machine filling machine consists of the equipment as below followings:
● The main frame of equipment is welded from 120X60X6mm high-strength carbon steel.
● The main support of the equipment frame is arranged in a "well" type, and the distance between two adjacent supports does not exceed 600mm.

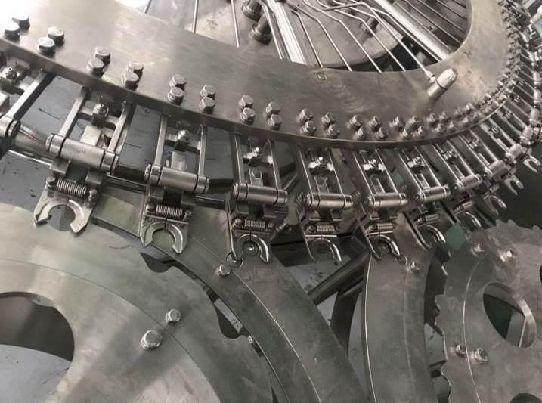

● Using the company's original flipping bottle clamp, the bottle clamp stuck the bottleneck part, to avoid the traditional bottle clamp on the rubber clamp on the bottle thread part of the possible pollution.
● Bottle clamp and lifting mechanism sliding sleeve are made of German igus corrosion resistant maintenance free bearings.
● Filling valve structure design is reasonable, the high speed, high precision. All parts using CNC machining center equipment.
● The sealing head adopts the magnetic constant torque device, when the swivel head is removed through the cover plate, the top cap mold covers the cap, and the cap is straightened to ensure that the cap is positioned correctly in the swivel cover mold to ensure the sealing quality.
Application fields
Drinking water filling machine is widely used in mineral water factory, pure water plant, barreled water production line, bottled water production line and beverage factory.

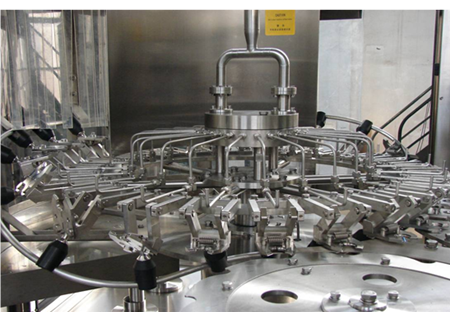

Rinser part

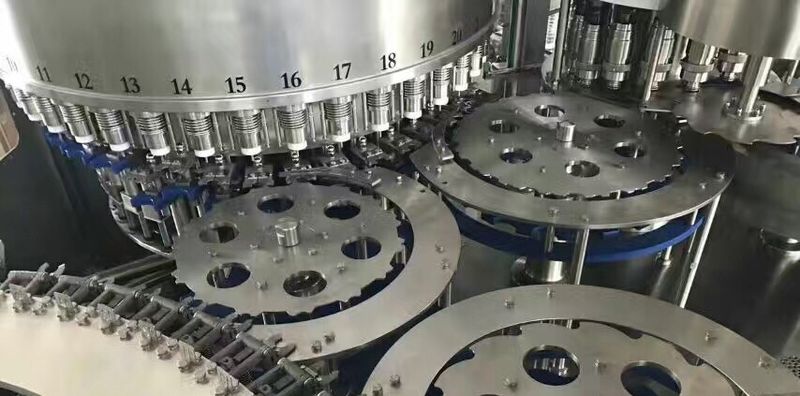

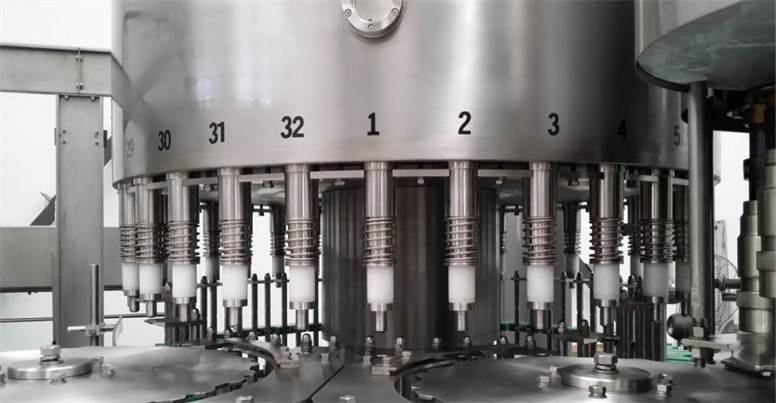

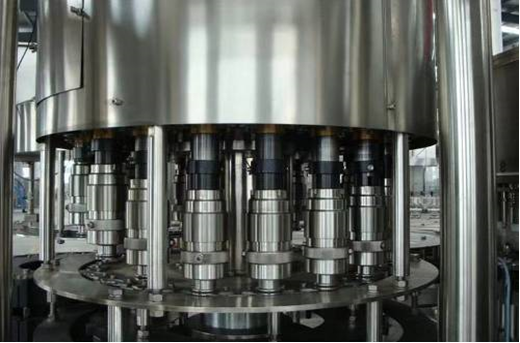

Filling part

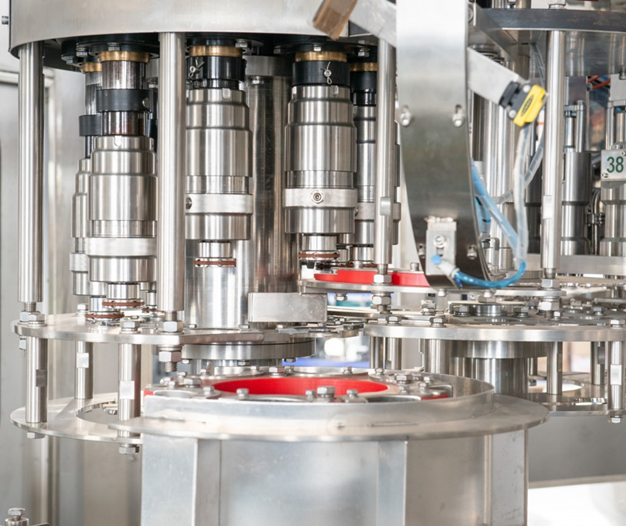

Capping part

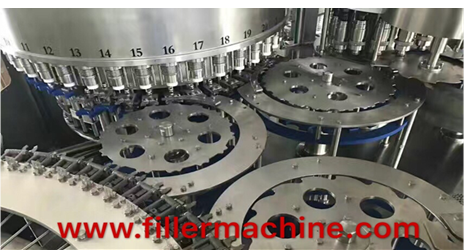

Bottled Water Filling LineBottled Water Production Line is designed for filling mineral water, purified water or other non-carbonated liquid into PET bottle. Applied Containers: PET bottles with various capacities and shapes. Application: Mineral water and other bottled water etc. Filling System: Mechanical Valve or Flow-Meter Valve. Capacity: 5,000-48,000BPH. Product’s scope: Blowing molding system, air compressor system, filling system , purification system, caps sterilization system, sterile air system, filled bottle conveying system, labelling machine, carton/film packing machine, palletizer, electric control, engineering design and construction. Rinser-Filler-Capper Monobloc is an efficient automatic liquid packing machine that perfectly combines bottle rinsing machine, pressure filling machine and capping machine. Empty bottles are orderly fed into the rinsing machine by an air conveyor, and then are turned over and washed inside by the nozzles. After dripping, bottles are automatically sent to the filling machine for high quality and high speed filling. At last, the capper is used for safe and reliable capping of these bottles. Features1、All parts in contact with liquid and material are made of superior stainless steel to meet the requirement of food hygiene. 2、Adopting Mechanical valve or flow-meter valve filling, the filling machine can accurately fill at high speed while maintaining high filling quality. 3、Bottles are fed by the air conveyor, conveyed by clipping the bottle neck, and put out via the conveyor chain, thus making it easy and convenient to change bottle size. 4、Our bottled water production line is controlled by frequency conversion motor+PLC+man-machine interface. So production speed, shift production and failure alarm etc. are displayed on the screen for simple operation. 5、The machine is equipped with stainless steel shield and safeguard door (made of organic glass, with safety electrical switch). The machine will automatically stop when the door is opened. |
|
|
