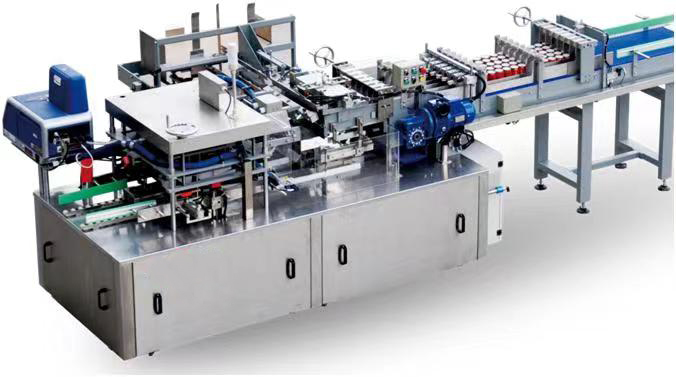

Automatic Carton Wrap Around Packing machine

1. Model：DB20

2. Scope of supply : infeed conveyor one set, main machine 1 set

3. Basic specification description

3.1Capacity：15-20 packs per minute

3.2Packing：wrap around

3.3 Bottle dividing: cylinder type

3.4Bottle shape：

• （1）Glass bottle, PET bottle and can etc. Diameter: Ø55~110mm

• （2） Bottle height: H80~320mm（Notice：each bottle diameter and height difference±2mm, otherwise thought as another bottle size）

3.5Pack size

• （1）L200~530mm

• （2）W130~300mm

• （3）H80~330mm

3.6 Machine dimensions：3100mm*2400mm*2000mm（L*W*H）
