Case Loading

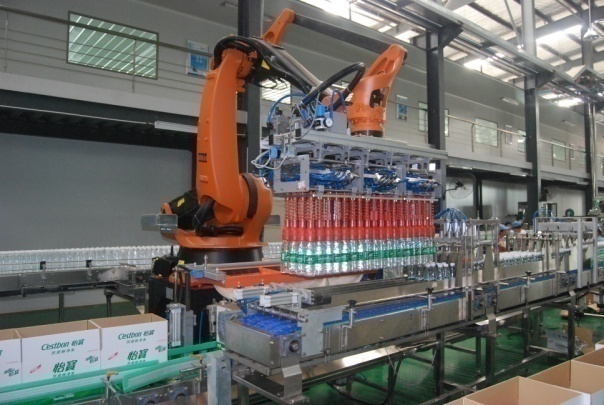

Working principle: the conveyor belt will transport the product to the grouping mechanism, the grouping mechanism will divide the product into 3X6 or 3X4 arrangement according to the requirements, after the grouping by the specially designed bottle pulling speed mechanism will open a certain distance between the grouped products; The product is then transported to the manual filling station through the conveyor line; After manually adding the paper card, the product is transported to the waiting station, squeezed to ensure the pressure between the paper card and the bottle, and then enters the waiting station; The robot moves the fixture to absorb the product, and at the same time, the paper card is carried into the carton to complete a layer of packing action; 3X4 specifications only absorb once; 3X6 specification After loading the first layer, the robot rotates on the side to absorb the intermediate paper partition into the carton, and then absorb the product into the carton to complete the 3X6 specification packing.
